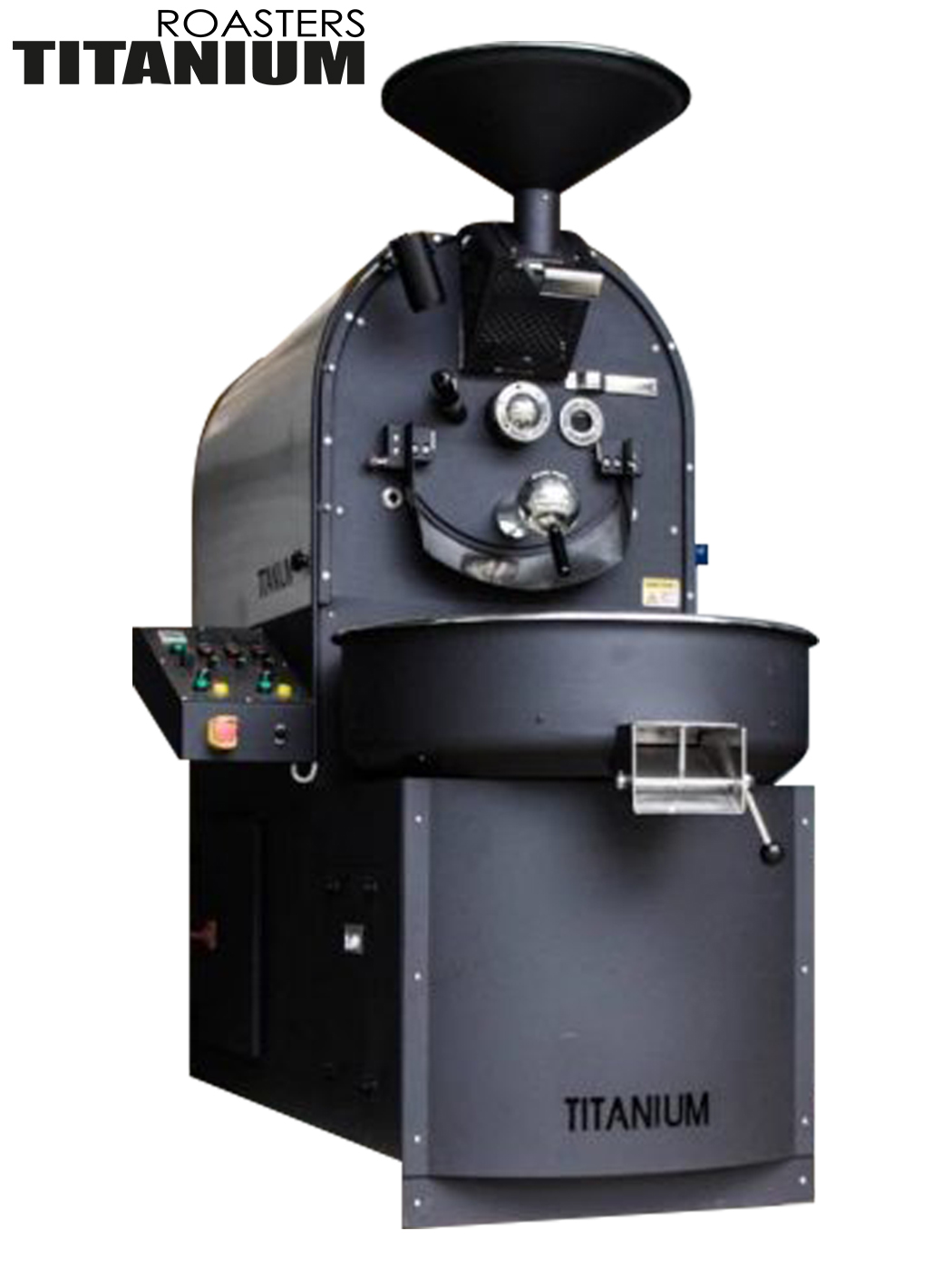

Titanium Roasters TGX-12

Model: TGX-12

• Dimension: 755x2758x2195)

Specification: (Weight: 905 KGS included Exhaust Cyclone

• Roasting time: 12-18 minutes/batch
• Working capacity: 12 kg/batch
• All of gear motors are used for roasting system: 3 phase, 380V-50Hz.
• Geared motor for drum: 0.75Kw, Sumitomo – JAPAN
• Geared motor for cooling tray: 0.2KW, Sumitomo – JAPAN
• Fan motor : SIEMENS
• Fan for cooling : Taiwan
• Drum of roaster: Drum Speed : 45-58 RPM

Material: High temperature resistant

Have 2 layers (Double Jacket Design)

No shaft

• Installed Phidgets 4 Slots – Model: 1048
• Body of Roaster

Material: Mild steel with powder coating, strengthened structure design.

Face side of machine has made from iron casting with temperature-resistant.

• Gas burner: 2 Ceramics
• Control panel: LS, ABB, Omron

(Not including LPG Gas supply system)

Optional :

• Automation System 250,000 THB
• Golden Color 25,000 THB
• Loader 130,000 THB
• Destoner 170,000 THB

Please Note :

• All Price are Exclude Vat7%
• Delivery fees for only Bangkok and around Bangkok area
• All Price might be change if Bank Transfer (T/T) rate has increasd over 2.5%
• 2 Year Warranty and 1 time reservation of Maintenance Service are include
• Free Installation and Basic Training. (Electricity, Exaust and Gas System are arranged by customer)
