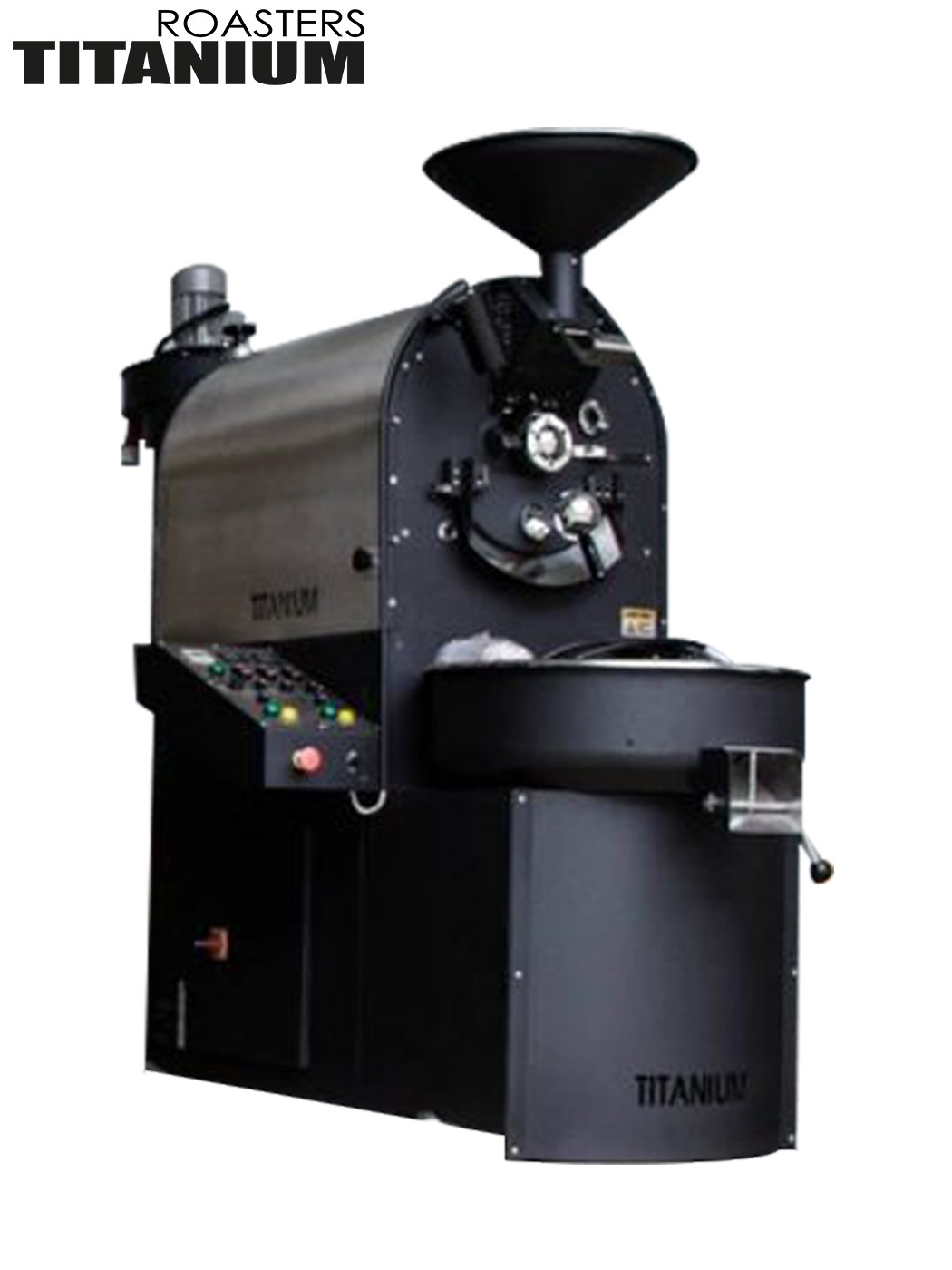

Titanium Roasters TGX-5
฿640,000.00
Share
Model: TGX-5
Dimension: 630 x 2172 x 1982 mm
Specification:
- Weight: 560 KGS included Exhaust Cyclone
- Roasting time: 12-16 minutes/batch
- Working capacity: 5 kg/batch
- All of gear motors are used for roasting system: 3 phase, 380V – 50Hz.
- Geared motor for drum: 0.37Kw, Sumitomo – JAPAN
- Geared motor for cooling tray: 0.2KW, Sumitomo – JAPAN
- Fan motor hot air : SIEMENS
- Fan motor for cooling : 200W, of Taiwan
- Drum of roaster: Drum Speed : 45-58 RPM
Material: High temperature resistant
Have 2 layers (Double Jacket Design)
No shaft
- Installed Phidgets 4 Slots – Model: 1048
- Body of Roaster
Material: Mild steel with powder coating, strengthened structure design.
Face side of machine has made from iron casting with temperature-resistant.
- Gas burner: 2 Ceramics
- Control panel: LS, ABB, Omron
(Not including LPG Gas supply system)
Optional :
- Golden Color 20,000 THB
Please Note :
- All Price are Exclude Vat7%
- Delivery fees for only Bangkok and around Bangkok area
- All Price might be change if Bank Transfer (T/T) rate has increasd over 2.5%
- 2 Year Warranty and 1 time reservation of Maintenance Service are include
- Free Installation and Basic Training. (Electricity, Exaust and Gas System are arranged by customer)
